YY Permanent-split Capacitor Motor

1 Horsepower Electric Motor Single Phase

Quick Details Packaging & Delivery YY series single phase permanent-split capacitor asynchronous motor Product Description: 1) Frame size: 50-90 2) Rated power: 0.4-1.5kW 3) Rated voltage: 110 - 120V, 200 - 240V 4) Frequency: 50Hz, 60Hz 5) Protection class: IP44, IP54, IP55 6) Insulation......

Quick Details

Place of Origin: Zhejiang, China (Mainland)Brand Name: DFDModel Number: YY SERIES
Usage: UniversalProtect Feature: EnclosedFunction: Driving
Structure: Asynchronous MotorPhase: Single-phaseSpeed: Constant Speed
Power: ACShape: Other


Packaging & Delivery

Packaging Detailsseaworthy ,packes for export requirement
Delivery Time25-30 DAYS

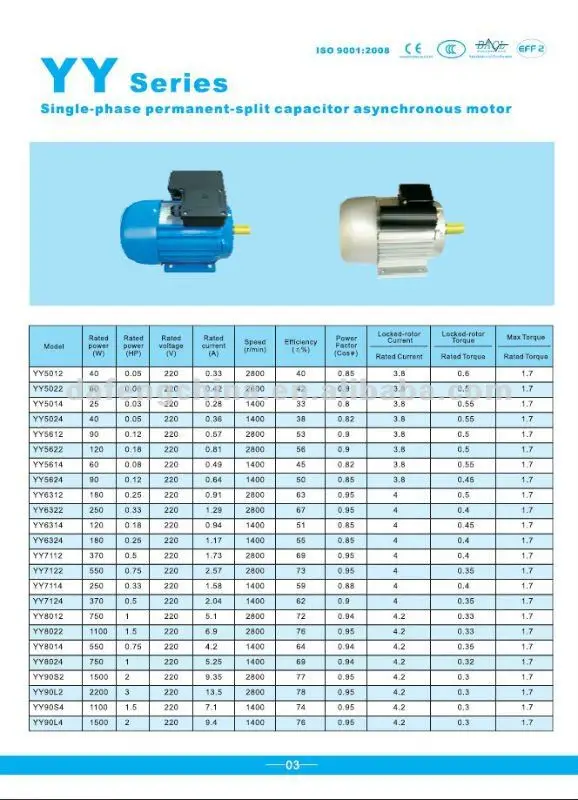

YY series single phase permanent-split capacitor asynchronous motor

Product Description:

1) Frame size: 50-90
2) Rated power: 0.4-1.5kW
3) Rated voltage: 110 - 120V, 200 - 240V
4) Frequency: 50Hz, 60Hz
5) Protection class: IP44, IP54, IP55
6) Insulation class: E, B, F
7) Materials: cast iron, aluminum (FRAME 63-132)
8) EFF: EFF3, EFF2, EFF1
9) Poles: 2
10) Speed: 2,800rpm
11) Cooling method: IC411 (total-enclosed fan-cooled type)
12) Mounting types: IMB3, IMB35, IMB5, IMB14, IMB34
13) Operating mode: S1
14) Connection: Y type for 3kW and downwards, "D" type for 4kW and upwards
15) Ambient temperature: -15- 40
16) Altitude should be lower than 1,000m above the sea level
17) Relative humidity: not higher than 90%
18) Special motors can be designed according to customers'requirements
19) Export markets: Europe, North America, the Middle East, Africa, Southeast Asia,East
Asia, South America

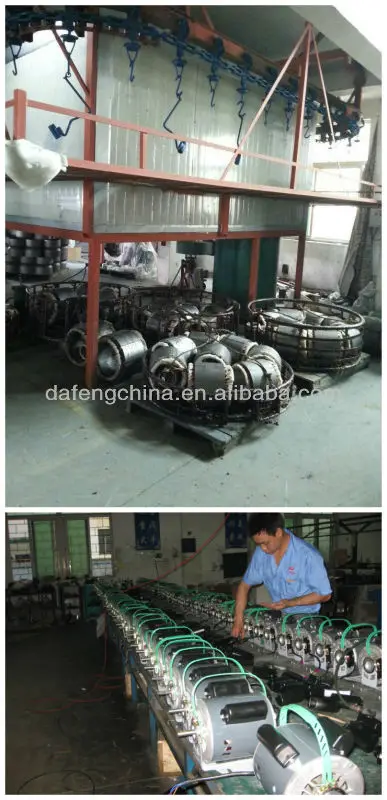

Factory:
